CI/CD Pipelines

Used Stacks

1. Jenkins (Black, flake8, Pylint, Setuptools, PyTest, Sphinx)

2. GitHub Actions

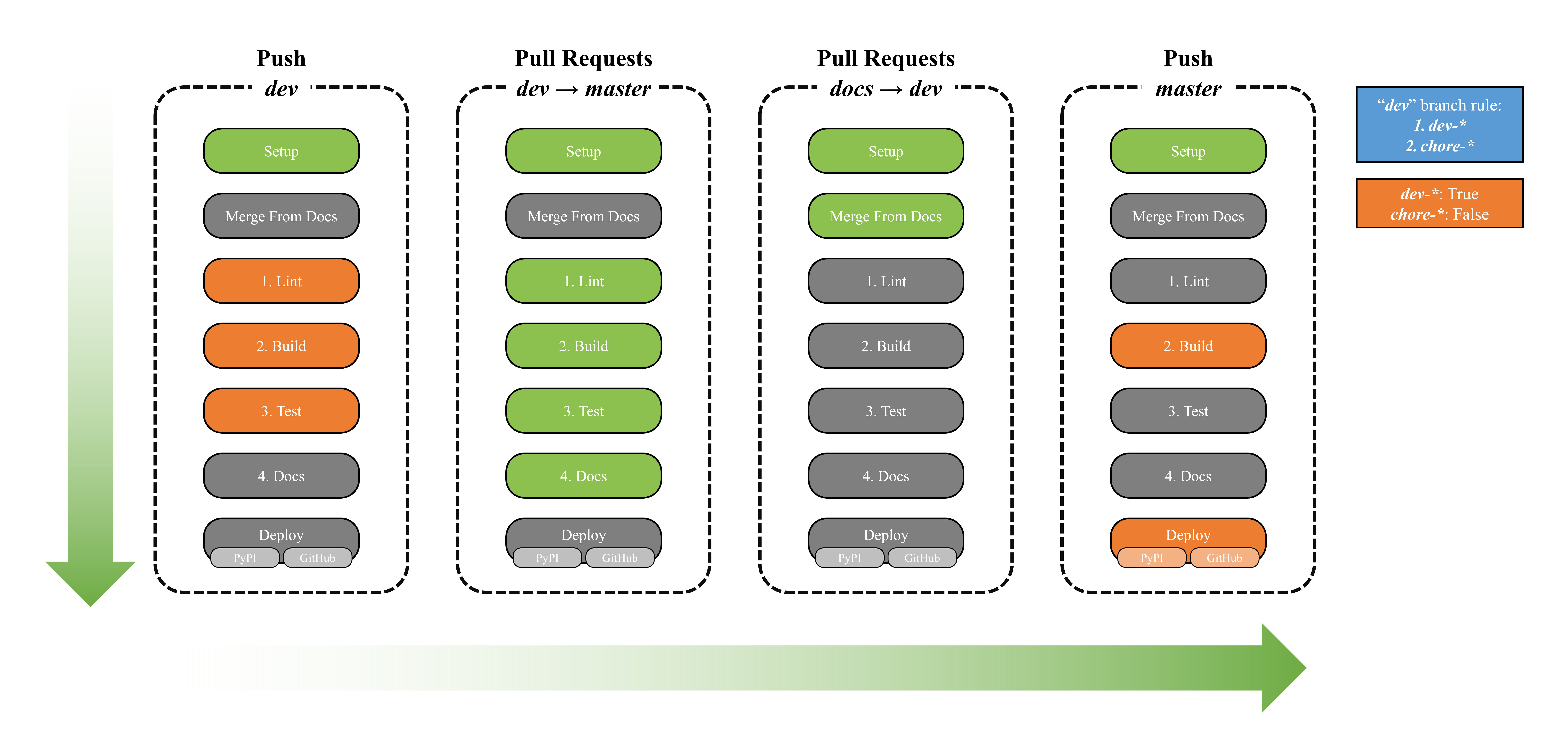

Jenkins

Stage	Condition
1. Setup	⭕ [* Push]
2. Merge From Docs	⭕ [* Push] “Merge pull request*/docs” ⭕ [* Push] “Merge pull request*[Docs] Build by Sphinx for GitHub Pages”
3. 1. Lint	⭕ [dev* Push] ⭕ [master PR] (Except “Merge pull request*/docs” && “Merge pull request*[Docs] Build by Sphinx for GitHub Pages”)
4. 2. Build	⭕ [master Push] (Except “Merge pull request*/chore*”) ⭕ [dev* Push] ⭕ [master PR] (Except “Merge pull request*/docs” && “Merge pull request*[Docs] Build by Sphinx for GitHub Pages”)
5. 3. Test	⭕ [dev* Push] ⭕ [master PR] (Except “Merge pull request*/docs” && “Merge pull request*[Docs] Build by Sphinx for GitHub Pages”)
6. 4. Docs	⭕ [master PR] (Except “Merge pull request*/docs” && “Merge pull request*[Docs] Build by Sphinx for GitHub Pages”)
7. Deploy	⭕ [master Push] “Merge pull request*from Zerohertz/dev*” (Except “*from Zerohertz/chore*”)

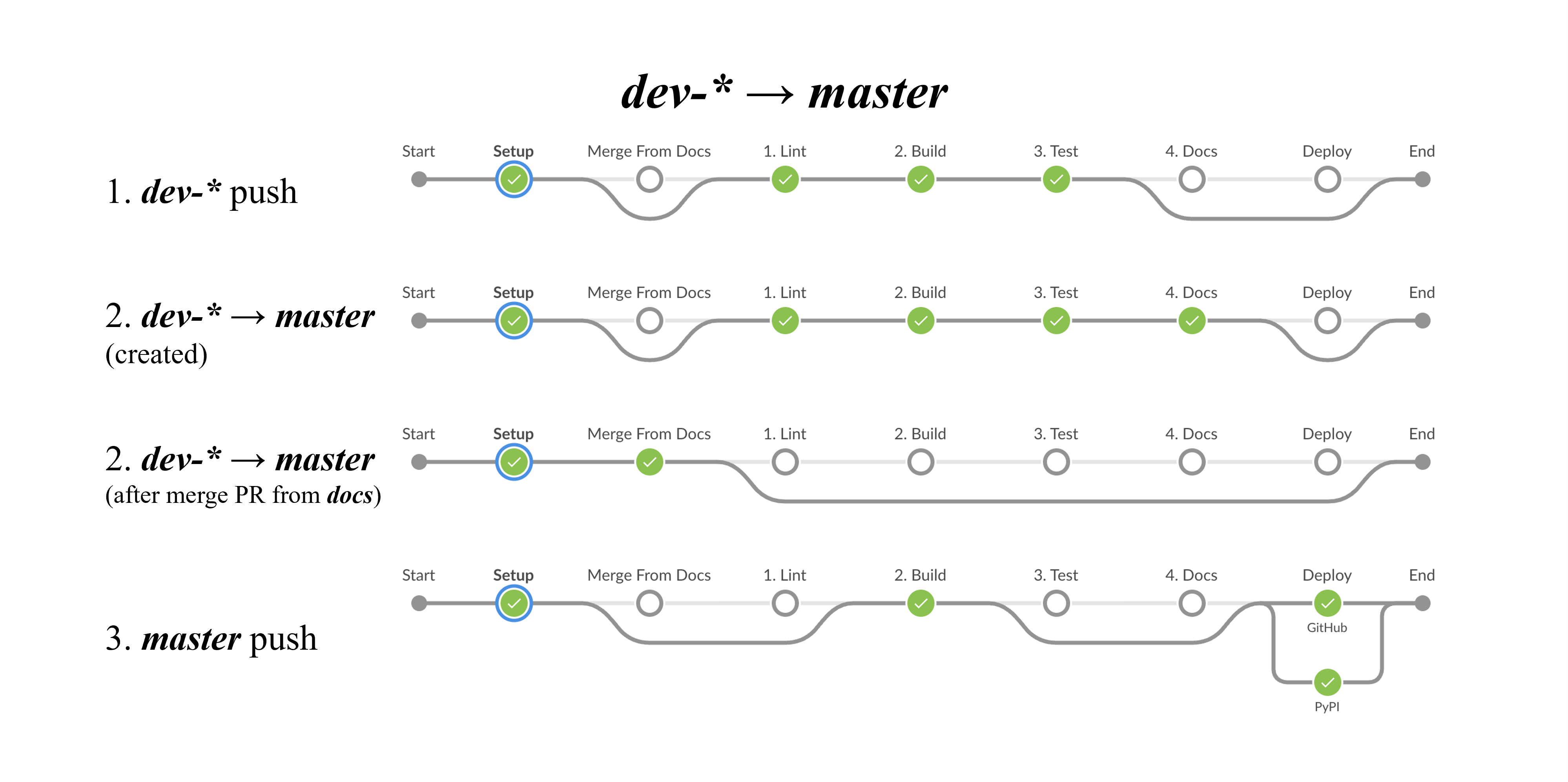

Dev Branch

Branch Rule

The dev branch is used when there are functional changes resulting in different build outcomes.

1. dev-* push

   1. Setup: Commit message parsing

   2. 1. Lint: Check format of python codes

   3. 2. Build: Install dependencies & build package

   4. 3. Test: Do PyTest

2. dev-* → master

   1. Setup: Commit message parsing

   2. 1. Lint: Check format of python codes

   3. 2. Build: Install dependencies & build package

   4. 3. Test: Do PyTest

   5. 4. Docs: Create PR (docs → dev-*) including the build results generated by Sphinx

   6. Merge From Docs: If merge PR from docs, can merge dev-* → master

3. master push

   1. Setup: Commit message parsing

   2. 2. Build: Install dependencies & build package

   3. Deploy

      1. GitHub: Deploy to GitHub

      2. PyPI: Deploy to PyPI

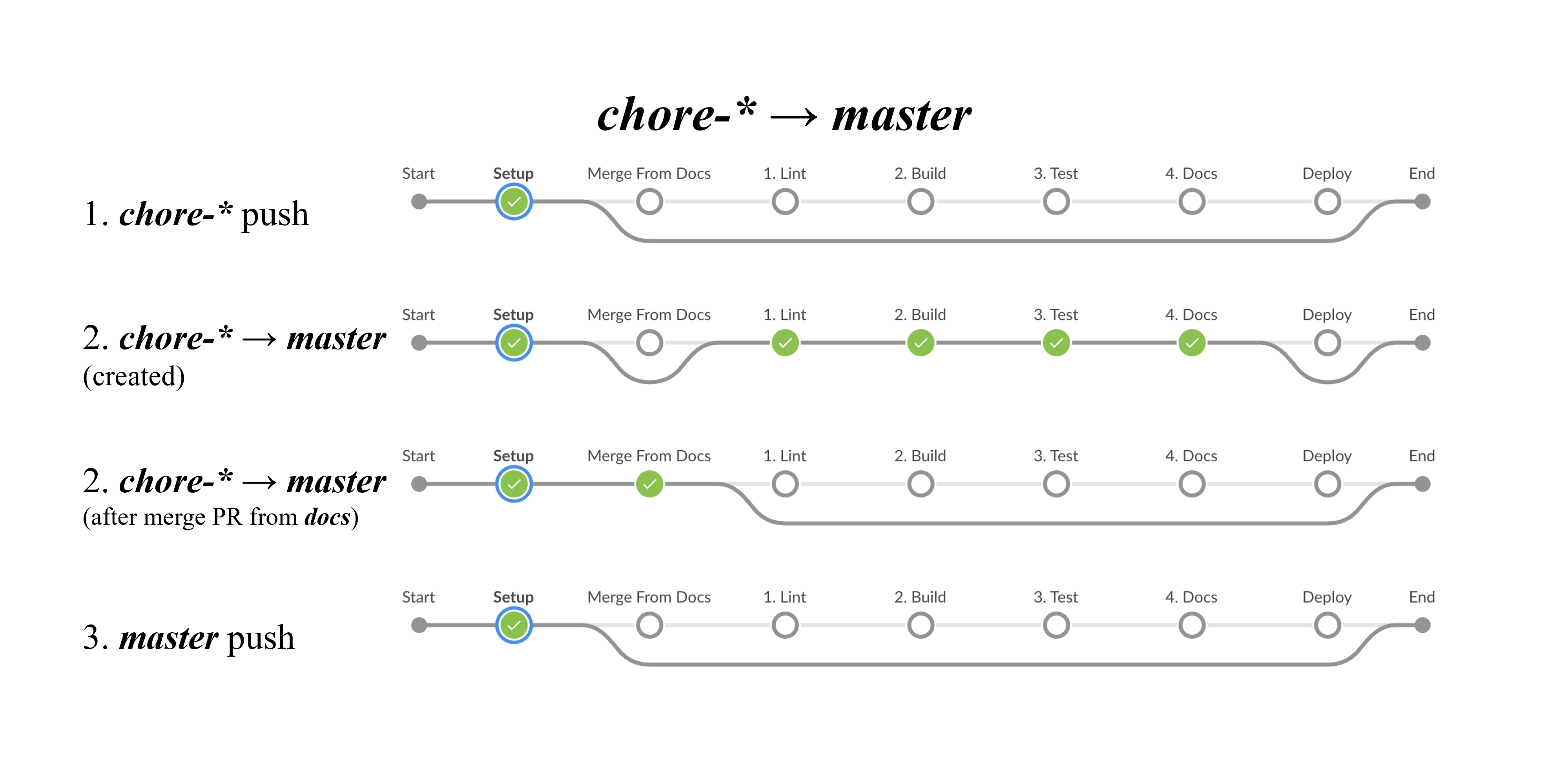

Chore Branch

Branch Rule

The chore branch is utilized when the build result is not different, but there are changes in the CI/CD pipeline or documentation.

1. chore-* push

   1. Setup: Commit message parsing

2. chore-* → master

   1. Setup: Commit message parsing

   2. 1. Lint: Check format of python codes

   3. 2. Build: Install dependencies & build package

   4. 3. Test: Do PyTest

   5. 4. Docs: Create PR (docs → chore-*) including the build results generated by Sphinx

   6. Merge From Docs: If merge PR from docs, can merge chore-* → master

3. master push

   1. Setup: Commit message parsing

GitHub Actions

Managing Labels for Issues and Pull Requests in GitHub

• Issue

  • assignees: ['Zerohertz']

  • contains(github.event.issue.title, '[Bug]') → labels: ['fix']

  • contains(github.event.issue.title, '[Chore]') → labels: ['chore']

  • contains(github.event.issue.title, '[Style]') → labels: ['style']

  • contains(github.event.issue.title, '[Docs]') → labels: ['docs']

• Pull Request

  • assignees: ['Zerohertz']

  • body.includes('bug') || body.includes('fix') || body.includes('수정') → labelsToAdd.push('fix')

  • body.includes('style') → labelsToAdd.push('style')

  • baseBranch === 'master' && headBranch.startsWith('dev')

    • labelsToAdd.push('release')

    • (file.filename.startsWith('Jenkins') || file.filename.startsWith('.github/workflows')) → labelsToAdd.push('chore')

    • (file.filename.startsWith('sphinx') && !file.filename.includes('release')) → labelsToAdd.push('docs')

    • (file.filename.startsWith('zerohertzLib/{MODULE_NAME}/__init__') || body.includes('{MODULE_NAME}')) → labelsToAdd.push('feat/{MODULE_NAME}')

  • baseBranch === 'master' && headBranch.startsWith('chore')

    • labelsToAdd.push('release/chore')

    • (file.filename.startsWith('Jenkins') || file.filename.startsWith('.github/workflows')) → labelsToAdd.push('chore')

    • (file.filename.startsWith('sphinx') && !file.filename.includes('release')) → labelsToAdd.push('docs')

  • baseBranch.startsWith('dev') || baseBranch.startsWith('chore')) && headBranch === 'docs'

    • labelsToAdd.push('docs')

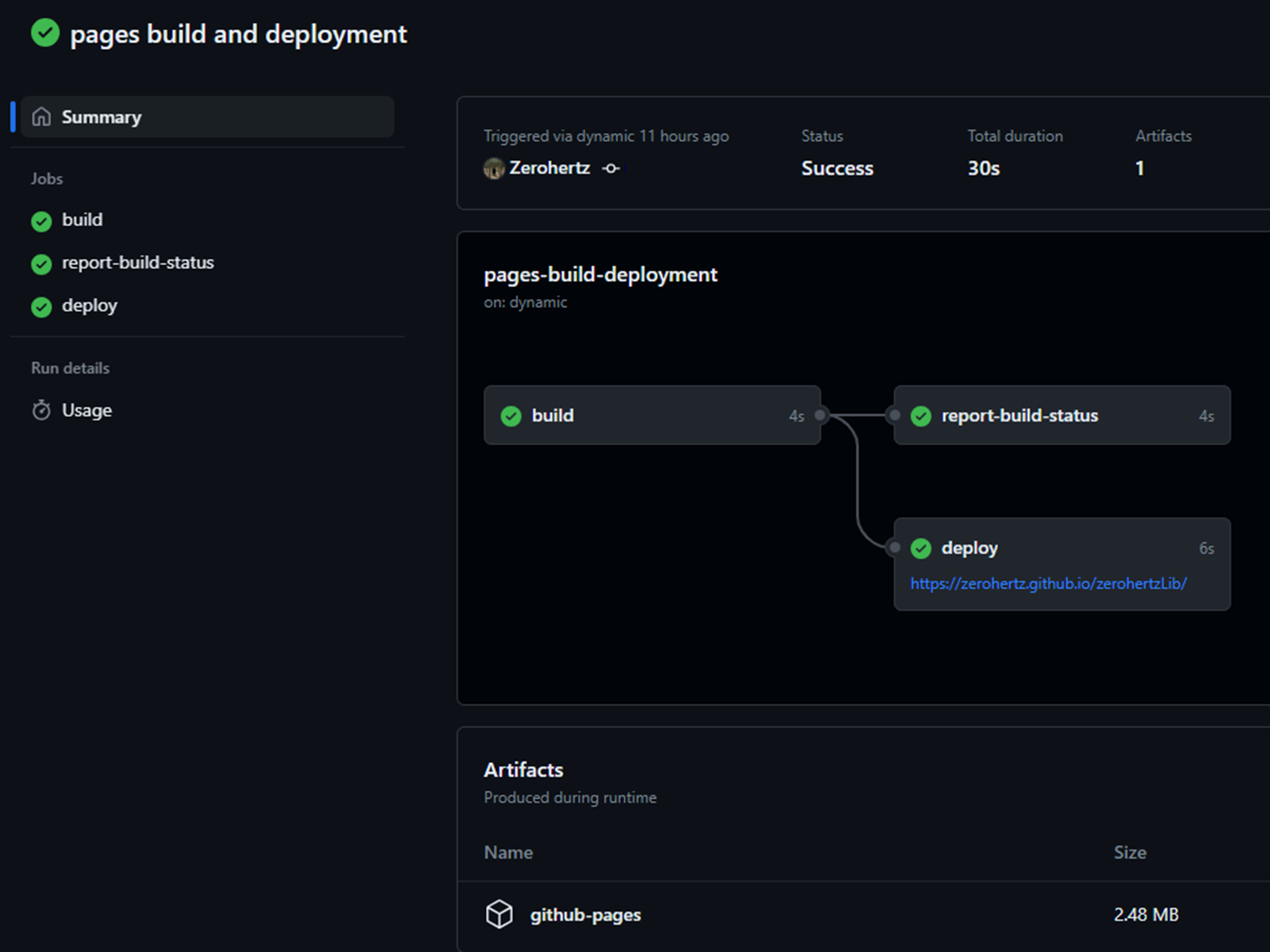

Sphinx Documentation Deployment

Sphinx Documentation

Documents created and built using Sphinx are deployed via GitHub Actions and GitHub Pages
