CI/CD Pipelines

Used Stacks

GitHub Actions (Ruff, Setuptools, PyTest, Codecov) & Read the Docs (MkDocs)

Branch Rules

Dev Branch

Branch Rule

The dev branch is used when there are functional changes resulting in different build outcomes.

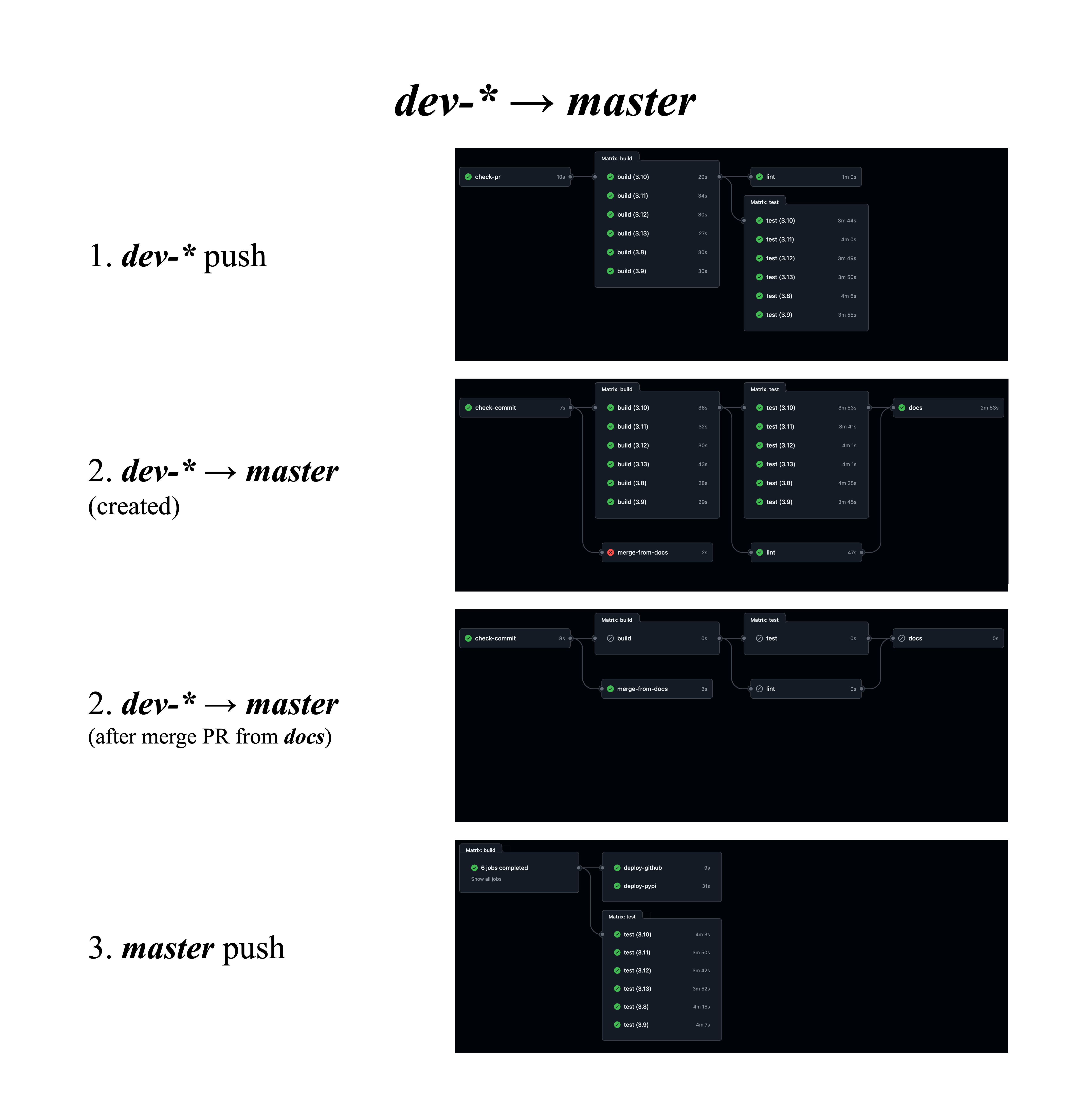

dev-branch

  1. dev-* push
    1. check-pr: Check if a PR is open for the dev-* branch
    2. build: Install dependencies & build package
    3. lint: Format and lint Python code with Ruff
    4. test: Do PyTest
  2. dev-* → master
    1. check-commit: Commit message parsing
    2. build: Install dependencies & build package
    3. lint: Format and lint Python code with Ruff
    4. test: Do PyTest
    5. docs: Create PR (docs → dev-*) including the build results generated by Sphinx
    6. merge-from-docs: If merge PR from docs, can merge dev-* → master
  3. master push
    1. build: Install dependencies & build package
    2. test: Do PyTest
    3. deploy
      1. GitHub: Deploy to GitHub
      2. PyPI: Deploy to PyPI

Chore Branch

Branch Rule

The chore branch is utilized when the build result is not different, but there are changes in the CI/CD pipeline or documentation.

chore-branch

  1. chore-* push
  2. chore-* → master
    1. check-commit: Commit message parsing
    2. build: Install dependencies & build package
    3. lint: Format and lint Python code with Ruff
    4. test: Do PyTest
    5. docs: Create PR (docs → dev-*) including the build results generated by Sphinx
    6. merge-from-docs: If merge PR from docs, can merge dev-* → master
  3. master push
    1. build: Install dependencies & build package
    2. test: Do PyTest

Managing Labels for Issues and Pull Requests in GitHub

  • Issue
    • assignees: ['Zerohertz']
    • contains(github.event.issue.title, '[Bug]') → labels: ['fix']
    • contains(github.event.issue.title, '[Chore]') → labels: ['chore']
    • contains(github.event.issue.title, '[Style]') → labels: ['style']
    • contains(github.event.issue.title, '[Docs]') → labels: ['docs']
  • Pull Request
    • assignees: ['Zerohertz']
    • body.includes('bug') || body.includes('fix') || body.includes('수정') → labelsToAdd.push('fix')
    • body.includes('style') → labelsToAdd.push('style')
    • baseBranch === 'master' && headBranch.startsWith('dev')
      • labelsToAdd.push('release')
      • (file.filename.startsWith('Jenkins') || file.filename.startsWith('.github/workflows')) → labelsToAdd.push('chore')
      • (file.filename.startsWith('sphinx') && !file.filename.includes('release')) → labelsToAdd.push('docs')
      • (file.filename.startsWith('zerohertzLib/{MODULE_NAME}/__init__') || body.includes('{MODULE_NAME}')) → labelsToAdd.push('feat/{MODULE_NAME}')
    • baseBranch === 'master' && headBranch.startsWith('chore')
      • labelsToAdd.push('release/chore')
      • (file.filename.startsWith('Jenkins') || file.filename.startsWith('.github/workflows')) → labelsToAdd.push('chore')
      • (file.filename.startsWith('sphinx') && !file.filename.includes('release')) → labelsToAdd.push('docs')
    • baseBranch.startsWith('dev') || baseBranch.startsWith('chore')) && headBranch === 'docs'
      • labelsToAdd.push('docs')

MkDocs Documentation Deployment

MkDocs Documentation

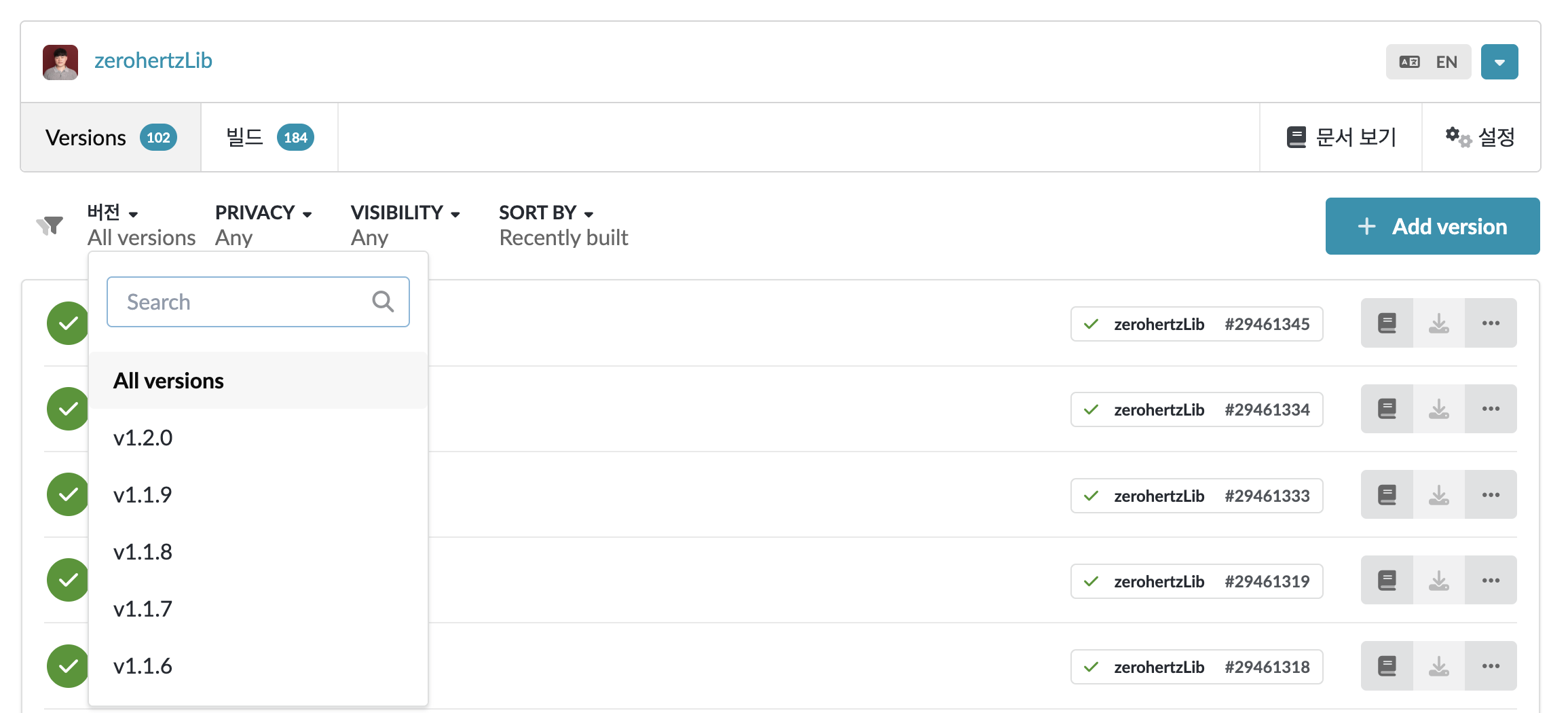

Documents created and built using MkDocs are deployed via Read the Docs

read-the-docs

Jenkins (Deprecated)

Used Stacks

Jenkins (Black, flake8, Pylint, Setuptools, PyTest, Sphinx)

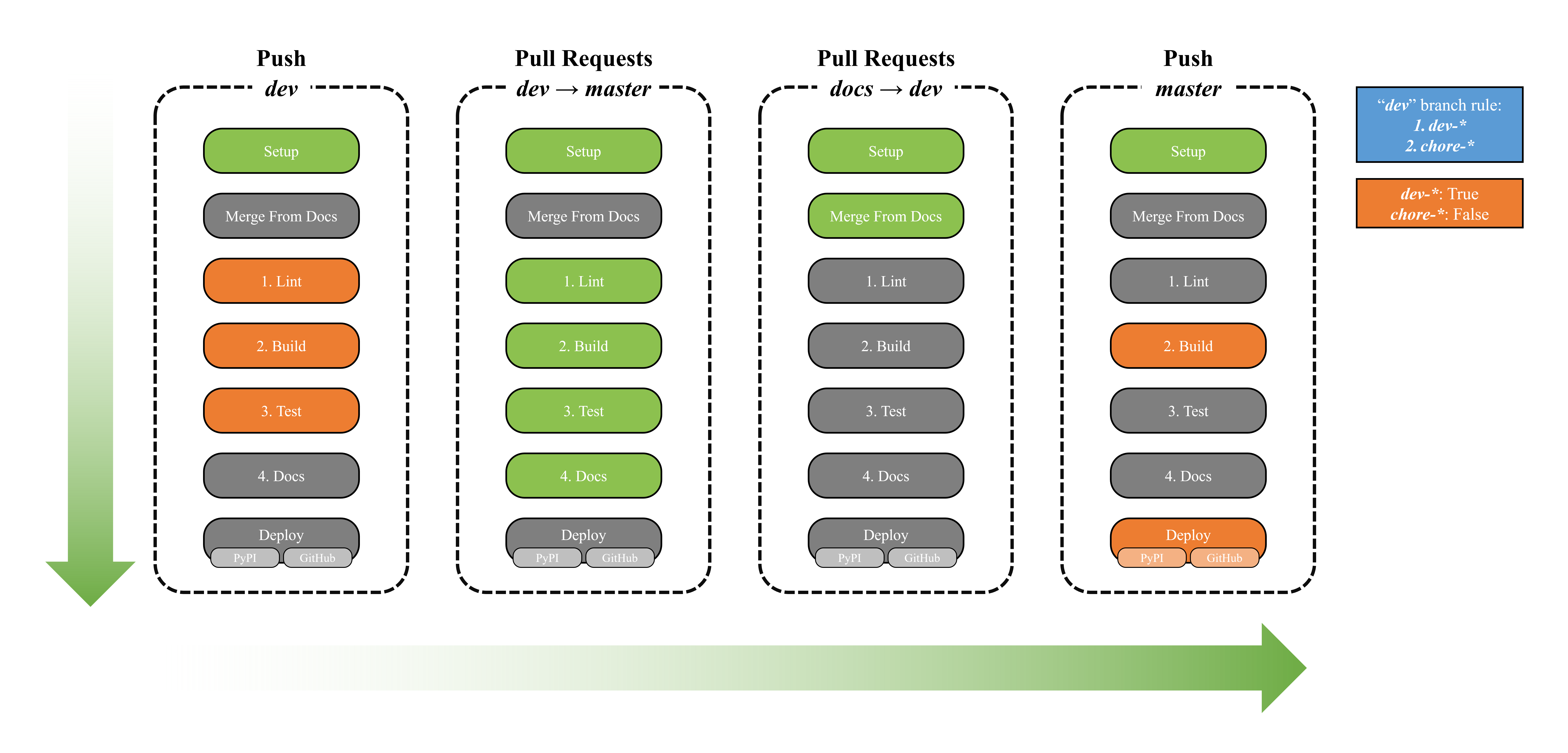

CI/CD

Jenkins

Stage Condition
1. Setup ⭕ [* Push]
2. Merge From Docs ⭕ [* Push] "Merge pull request*/docs"
⭕ [* Push] "Merge pull request*[Docs] Build by Sphinx for GitHub Pages"
3. 1. Lint ⭕ [dev* Push]
⭕ [master PR] (Except "Merge pull request*/docs" && "Merge pull request*[Docs] Build by Sphinx for GitHub Pages")
4. 2. Build ⭕ [master Push] (Except "Merge pull request*/chore*")
⭕ [dev* Push]
⭕ [master PR] (Except "Merge pull request*/docs" && "Merge pull request*[Docs] Build by Sphinx for GitHub Pages")
5. 3. Test ⭕ [dev* Push]
⭕ [master PR] (Except "Merge pull request*/docs" && "Merge pull request*[Docs] Build by Sphinx for GitHub Pages")
6. 4. Docs ⭕ [master PR] (Except "Merge pull request*/docs" && "Merge pull request*[Docs] Build by Sphinx for GitHub Pages")
7. Deploy ⭕ [master Push] "Merge pull request*from Zerohertz/dev*" (Except "*from Zerohertz/chore*")

Dev Branch

Branch Rule

The dev branch is used when there are functional changes resulting in different build outcomes.

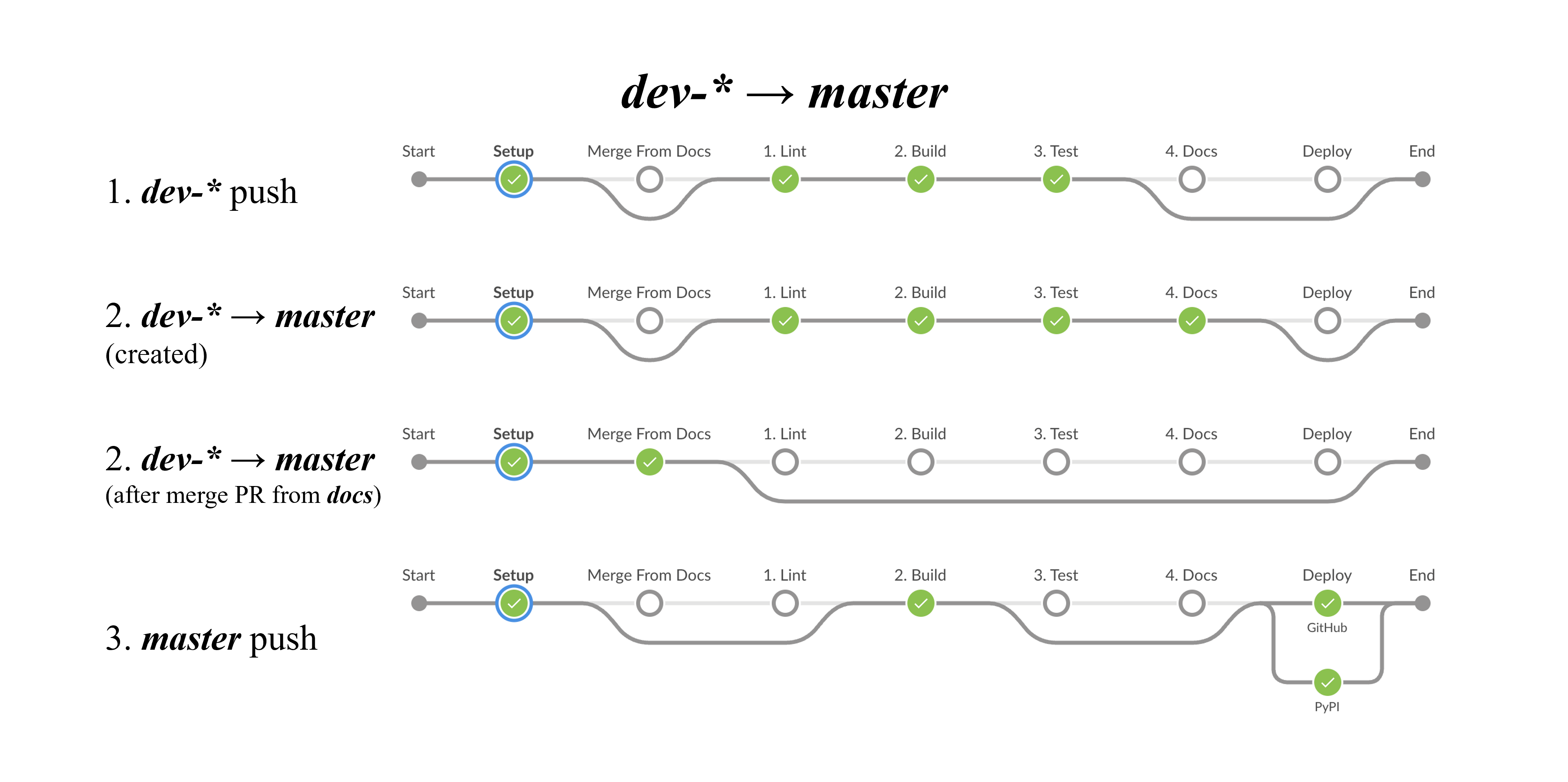

dev-branch

  1. dev-* push
    1. Setup: Commit message parsing
    2. 1. Lint: Check format of python codes
    3. 2. Build: Install dependencies & build package
    4. 3. Test: Do PyTest
  2. dev-* → master
    1. Setup: Commit message parsing
    2. 1. Lint: Check format of python codes
    3. 2. Build: Install dependencies & build package
    4. 3. Test: Do PyTest
    5. 4. Docs: Create PR (docs → dev-*) including the build results generated by Sphinx
    6. Merge From Docs: If merge PR from docs, can merge dev-* → master
  3. master push
    1. Setup: Commit message parsing
    2. 2. Build: Install dependencies & build package
    3. Deploy
      1. GitHub: Deploy to GitHub
      2. PyPI: Deploy to PyPI

Chore Branch

Branch Rule

The chore branch is utilized when the build result is not different, but there are changes in the CI/CD pipeline or documentation.

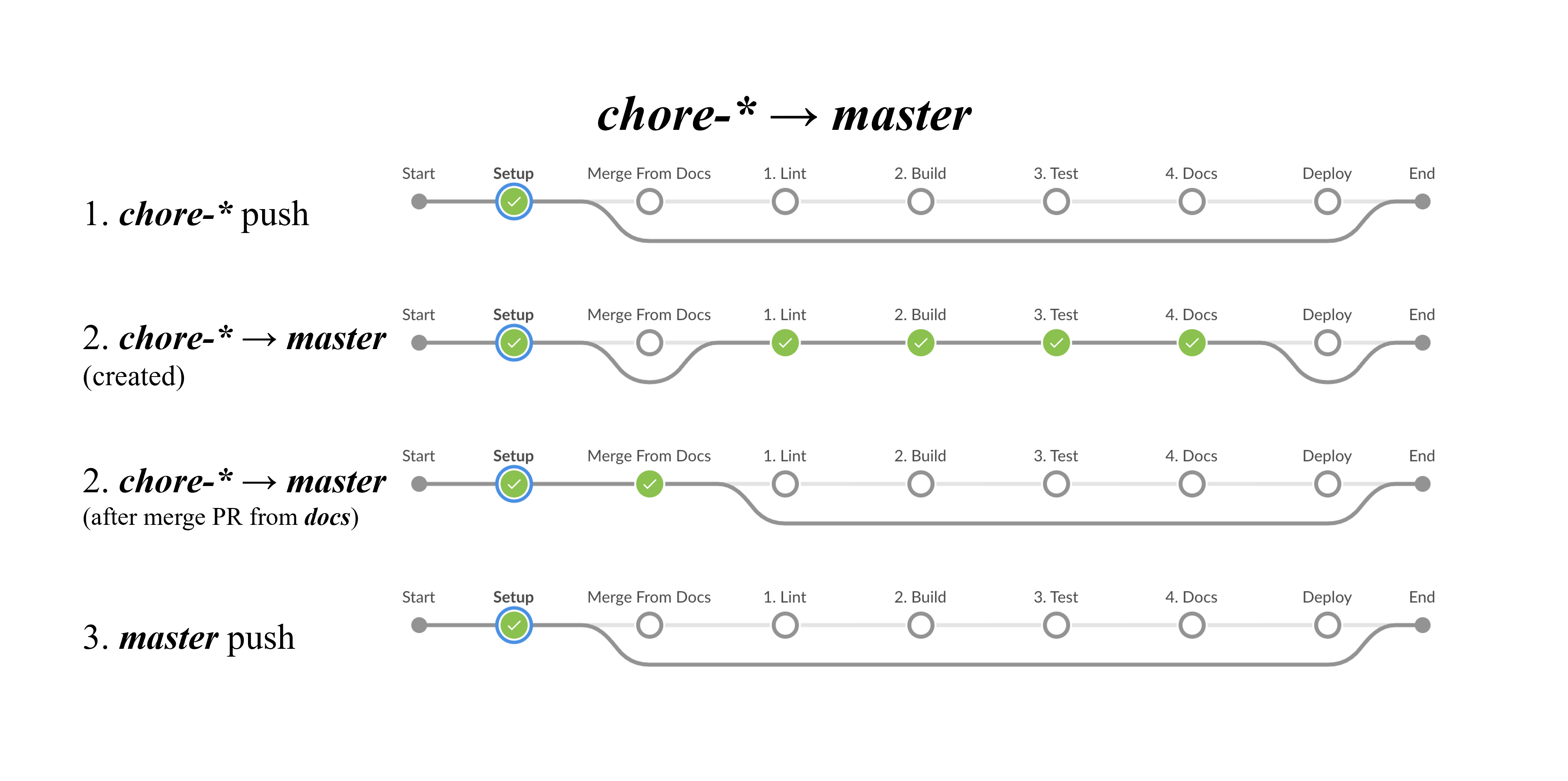

chore-branch

  1. chore-* push
    1. Setup: Commit message parsing
  2. chore-* → master
    1. Setup: Commit message parsing
    2. 1. Lint: Check format of python codes
    3. 2. Build: Install dependencies & build package
    4. 3. Test: Do PyTest
    5. 4. Docs: Create PR (docs → chore-*) including the build results generated by Sphinx
    6. Merge From Docs: If merge PR from docs, can merge chore-* → master
  3. master push
    1. Setup: Commit message parsing
